Current location:Home > Product > SWITCH > Dial switch

- Dial switch -

Tact Switch

Dial switch

< >

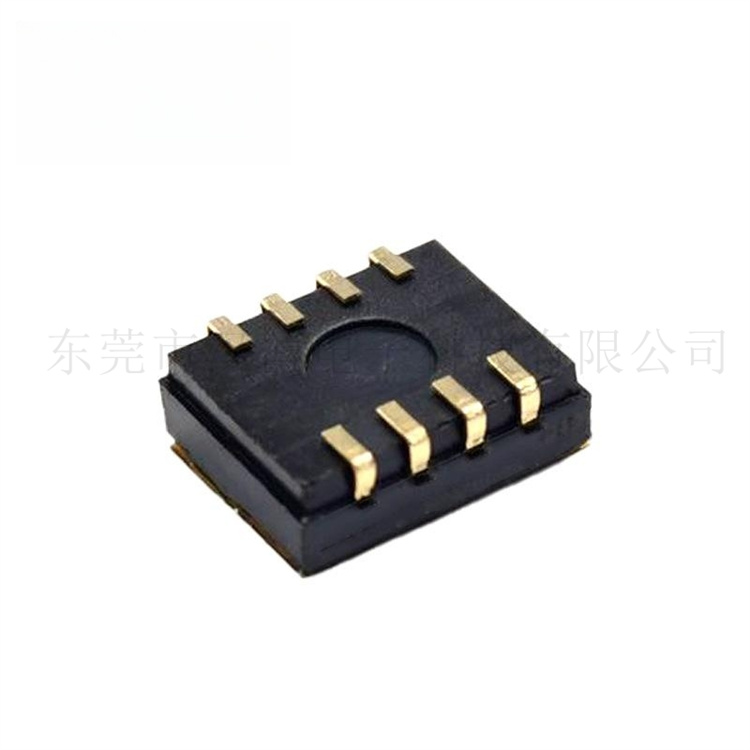

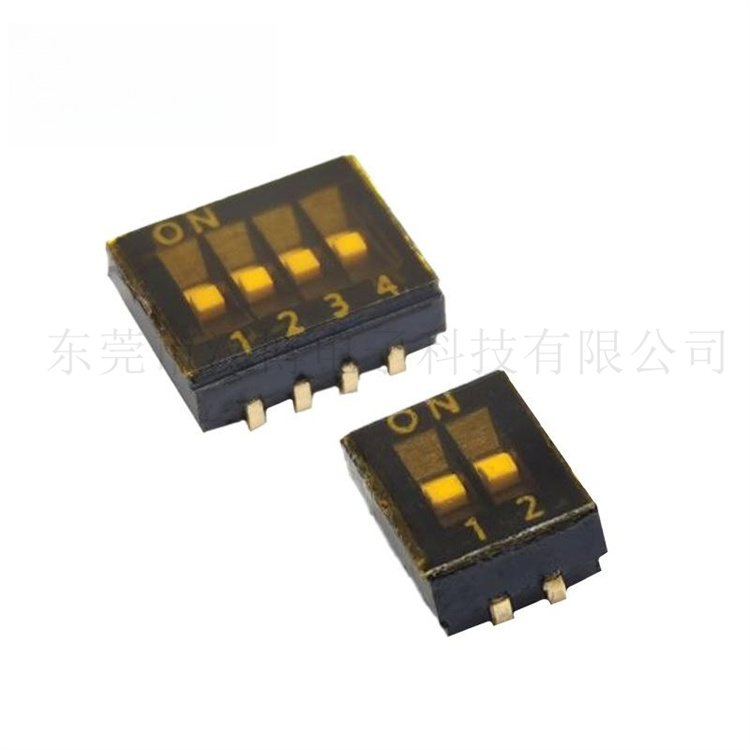

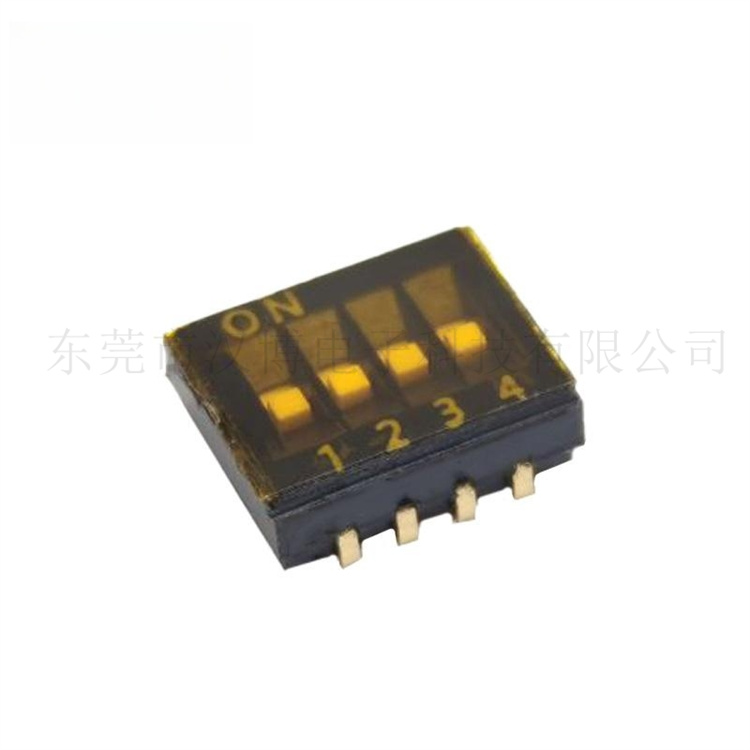

DU系列

品牌：漢博（HANBO）	產品型號：DU-XXXX
工作溫度：-25°~±85°C	最小包裝：2000PCS/圓盤

應用領域:數碼產品、安防、電腦、通訊產品、家用電器、智能家居、智能穿戴產品等。

Declaration: Data regarding product specifications, parameters, lifespan, working temperature, feel, waterproof grade, etc. are for reference only. For detailed test reports, please contact business personnel!

PDF Download

CAD Download

3D Download

Please contact the relevant business to request CAD/3D files

Characteristic
Document

產品介紹

類型

產品分類

連接器

產品系統

撥碼開關

開關種類

U腳撥碼開關

類型

平推型

位數

1-10位

間距(mm)

1.27mm

方向

貼片（SMT）

顏色

黑色

電氣

電流(最大)

0.5A

電壓(最大)

30V

接觸電阻

≤100mΩMAX

絕緣電阻

AC 500V 1Minute

額定負荷

DC 24V 25mA

工作溫度范圍

-25oC~+85oC

機械

操作方式

平推方式

安裝方式

表面貼裝

使用壽命

3000

材料

電鍍類型

鍍金

電鍍厚度

Gold flash

樹脂材質

LCP

阻燃性等級

UL94 V-0

包裝

包裝方式

卷裝
