TF內焊簡易式

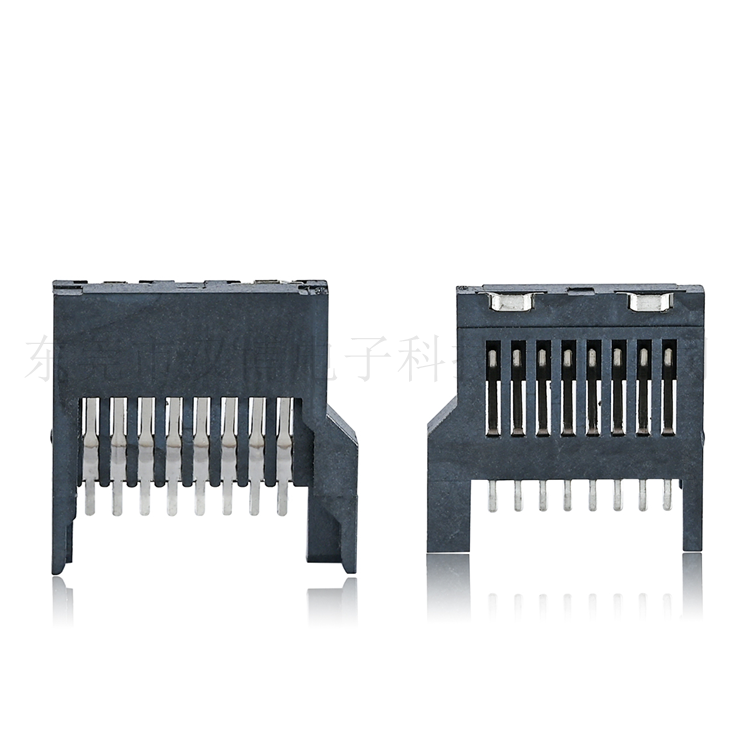

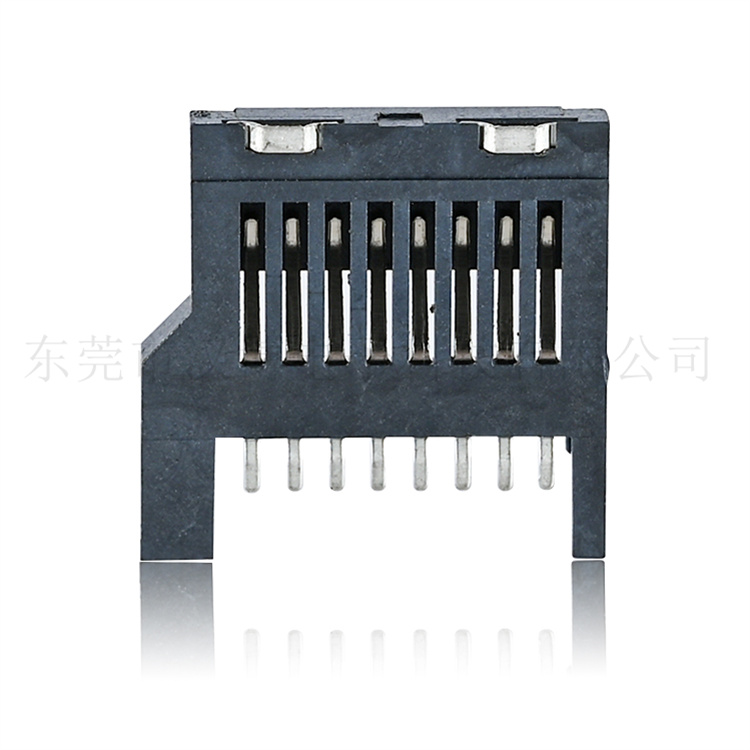

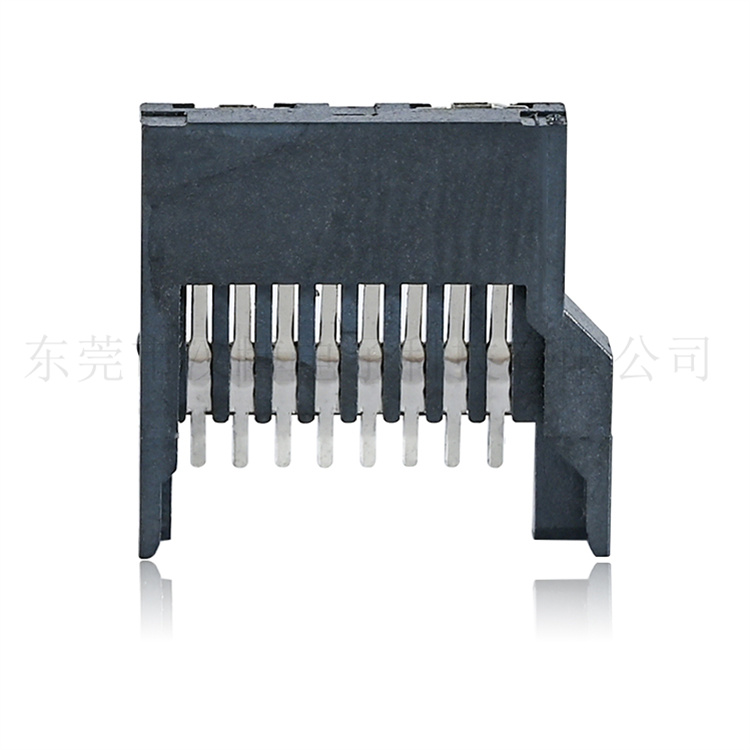

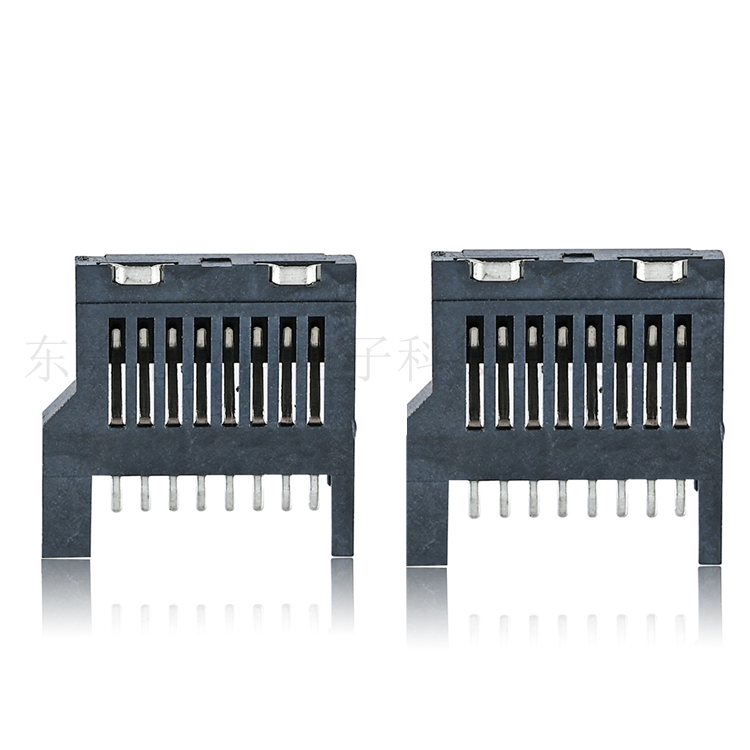

TF card holder

品牌：漢博（HANBO）	產品型號：TF-017
工作溫度：-25oC~+85oC	最小包裝：1500PCS/圓盤

應用領域:數碼產品、安防、電腦、通訊產品、家用電器、智能家居、智能穿戴產品等。

Declaration: Data regarding product specifications, parameters, lifespan, working temperature, feel, waterproof grade, etc. are for reference only. For detailed test reports, please contact business personnel!

PDF Download

CAD Download

3D Download

Please contact the relevant business to request CAD/3D files

Characteristic
Document

產品介紹

類型

產品分類

連接器

產品系統

卡座

卡座產品種類

TF卡連接器

類型

Micro型

位數

8位

定位柱

無柱

高度(mm)

H1.9

方向

臥式

顏色

黑色

電氣

電流(最大)

0.5A

電壓(最大)

100V

接觸電阻

30 mΩ Max

絕緣電阻

1000 MΩ Min

耐電壓

500V AC r.m.s

工作溫度范圍

-25oC~+85oC

機械

裝卡方式

自彈式

安裝方式

表面貼裝

耐用型(插拔次數)-最多次

5000

材料

電鍍類型

鍍鎳/鍍金

電鍍厚度

Gold flash

樹脂材質

LCP

阻燃性等級

UL94 V-0

包裝

包裝方式

卷裝
